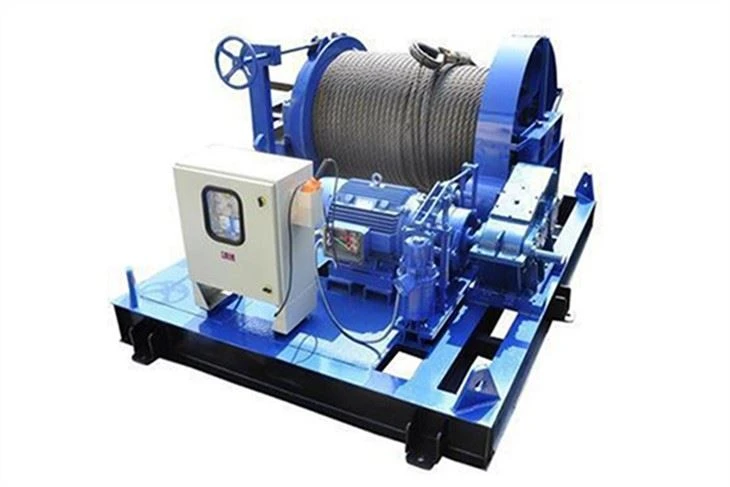

Elektr vintzalari / langar oynasi
Po'lat arqonlar yoki zanjirlar yoki vintlardek o'ralgan holda og'ir narsalarni ko'taradigan yoki ko'taradigan engil, kichik ko'tarish moslamasi. Ko'targich og'ir vaznni vertikal ravishda ko'tarishi, gorizontal yoki egishi mumkin.
Ta'rif
Mahsulotlarning tavsifi Elektr vinçleri / Anchor Windlass
Mahsulot parametrlari
Model | Baholangan yuk (KN) | Baholangan tezlik (m / min) | Arqon imkoniyatlar (m) | Arqon diametri (mm) | Dvigatelmodel | Dvigatel model (KVt) | Umuman olgandao'lchamlari (mm) | Jamivazn (kg) | |
JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 | |
JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 | |
JM3.2 | 32 | 10 | 150 | 15.5 | YZR16M2-6 | 7.5 | 1430*1160*910 | 1100 | |
JM5 | 50 | 10 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1500 | |
JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2600 | |
JM8B | 80 | 9.5 | 350 | 26 | YZ180L-6 | 15 | 1075*1589*985 | 2500 | |
JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 | |
JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 | |
JM12.5 | 20 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 | |
JM13.5 | 32 | 5 | 290 | 28 | YZP225S-8 | 22 | 2990*2363*1650 | 6500 | |
JM16 | 32 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 | |
JM20 | 50 | 10 | 600 | 43 | 45YZR280S-8 | 55 | 3950*2560*1950 | 9900 | |
JM25 | 50 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 | |
JM32 | 50 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2030 | 14800 | |
JM50 | 50 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 | |
JM65 | 50 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |
Xavfsizlik moslamasi: 1. Ikkita chegara tugmasi. 2. Hozirgi ortiqcha yuklanishdan himoya qilish moslamasi 3. Bufer. 4. Og'irlikni ortiqcha yukdan himoya qilish moslamasi. 5. Favqulodda tormoz.
Tafsilotlar Rasmlar
Ilova
Bizning afzalliklarimiz
Mahsulotni qadoqlash
1. Yuk ko'tarish va elektr qismlari etkazib berish paytida tovarlarning qulashi va ta'sirlanishining oldini olish uchun kontrplak qutisi bilan to'ldiriladi. 2. Qatlamlar va boshqa asosiy qismlar transport paytida zangning sovishini oldini olish uchun plastik to'quv mato bilan to'ldiriladi. 3. Faqat sizning mablag'ingizni moliya, xavfsizlik va vaqtni tejash uchun eng yaxshi transport echimi olinadi.
Ko'rgazma
Sotishdan keyingi xizmat
Issiq teglar: Elektr vinçleri / Anchor Windlass Xitoy, ishlab chiqaruvchilar, etkazib beruvchilar, moslashtirilgan, kotirovka, taklif, narx
